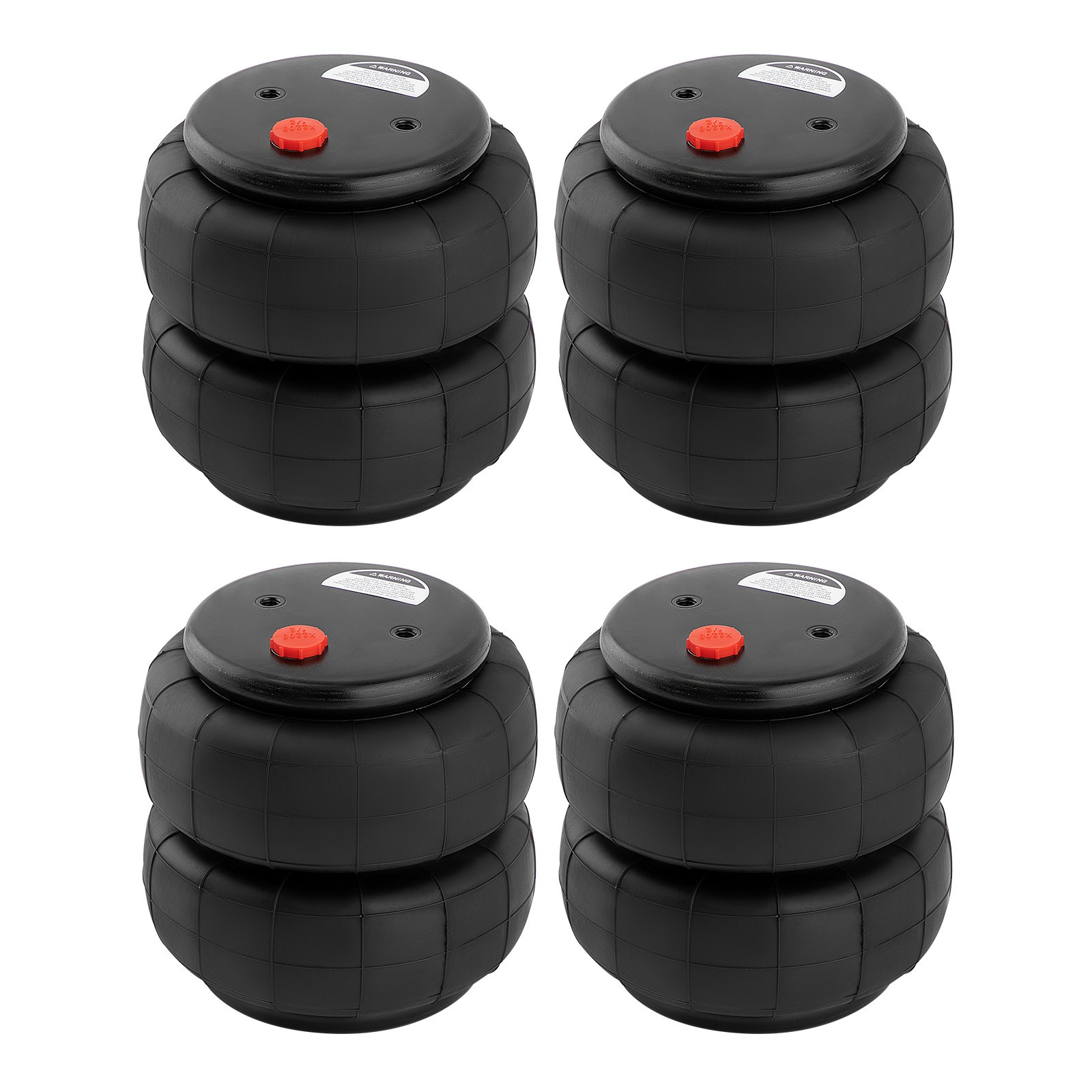

Direct-Fit Set of 4 Air Ride Suspension Bag Standard 2600 lb 1/2"npt Single Port Universal

Set of 4 Air Ride Suspension Bag Standard 2600 lb 1/2"npt Single Port Universal. MSRCA Set of 4 Air Ride Suspension Bag Standard 2600 lb 1/2"npt Single Port Universal All modifications must be installed by licensed mechanics and in compliance with your local modification regulations Technical Specifications Placement on Vehicle Left, Right, Front, Rear Design height 211 mm Min height 71mm Max height 318mm Working stroke 247mm Single air port size 1/2-14NPT Install hole size 3/8-16UNC Top plate diameter 139 mm Air spring bag body diameter 181 mm Air spring bag capacity 2600LBS Condition 100% Brand New Quantity 4 Pieces (For rear / front left or right) Warranty 2 Year Warranty for any manufacturing defect Application For GMC Silverado/Sierra 1500 For GMC Trail Boss/Sierra AT4 For Dodge/Ram 1500/2500/3500 For Ford F-150/F-250/F-350/F-450 2 & 4WD For Ford Super Duty For Chevrolet Silverado HD and GMC Sierra HD Compatible for most of Truck, Van, SUV, etc Please confirm whether the air spring bag parameters below(especially height, diameter, bolt specifications) are consistent with ours before purchasing. Dimensional Information Working stroke: 9.72 in / 247mm Air spring bag body diameter: 7.12 in / 181 mm Top plate diameter: 5.47 in / 139 mm Min height: 2.80 in / 71mm Max height: 12.52 in / 318mm Design height: 211 mm Install hole size: 3/8-16UNC Single air port size: 1/2-14NPT Air spring bag capacity: 2600LBS Excellent Performance Features 1、100% Air Tightiness testing 2、24 hours air tightness test ≤0.02MPa 3、Anti-corrosion and provide a more consistent wear surface 4、Built to strict quality control standards 5、CNC Machined Components 6、Designed for Comfort Suspension 7、Easy to install 8、Gives the driver more control of ride 9、Good heat dissipation 10、It has a high compressive strength and good sound insulation to ensure our driving comfort and safety 11、Test more than 5 million times 12、Sturdy & Durable Material Notice - These air suspension bags are aftermarket ones. They will replace the original air spring bags. - Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. - Instruction is not included. Professional installation is recommended. - please for whatever we can help.
