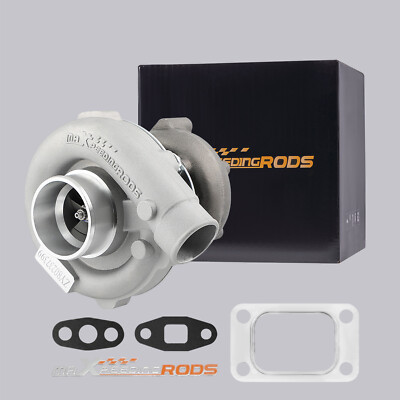

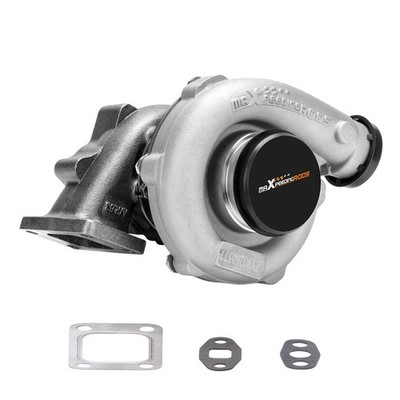

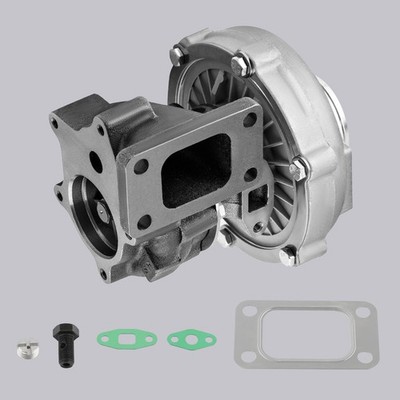

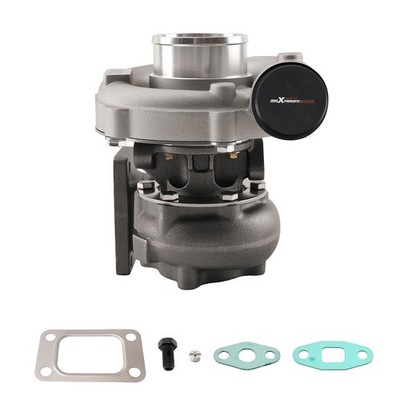

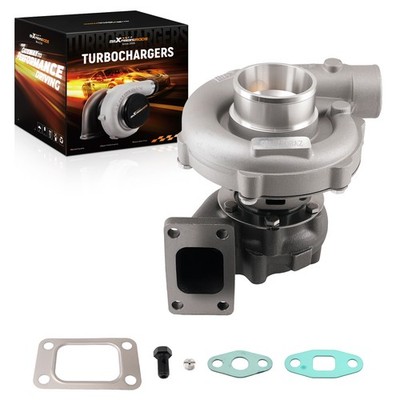

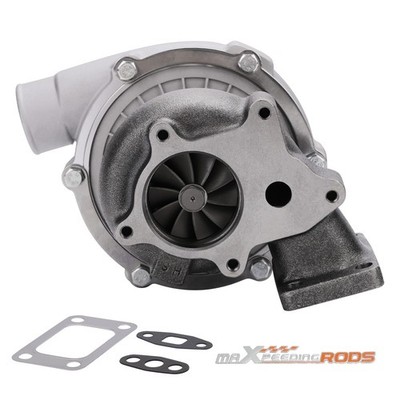

Direct-Fit T3/T4 T04E TURBO .63 A/R TURBINE Compatible with CIVIC B16 B18 D15 D16 TURBOCHARGER NEW

T3/T4 T04E TURBO .63 A/R TURBINE Compatible with CIVIC B16 B18 D15 D16 TURBOCHARGER NEW. T3/T4 T04E TURBO .63 A/R TURBINE For CIVIC B16 B18 D15 D16 TURBOCHARGER NEW All modifications must be installed by licensed mechanics and in compliance with your local modification regulations T04E T3/T4 0.63 A/R TURBO/TURBOCHARGER COMPRESSOR UP TO 400+HP STAGE III Notice: Please confirm that your car's displacement is between 1.5-2.5L . Please check the size before purchasing and make sure that your car has enough space to install this turbo. Fit for: for 1.5L to 2.5L any 4/6 cylinder engine Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) Specification: Turbine: Turbine Intake Flange: T3 T4 4 bolt Flange Patterns Turbine Exhaust Flange: Standard T3 5 bolt flange pattern Turbine Trim: 74.2 Turbine A/R: 0.63 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust inlet: 44.5mm/81mm Compressor: Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Compressor outlet: 45mm(inside diameter), 53mm(outer diameter) Compressor inlet : 4 68 mm(inside diameter), 72mm(outer diameter) Oil Inlet: M12*1.25 Oil Outlet:2*M8*1.25 Cooling Type: Oil Cooling Bearing Type: Journal Bearing/Floating Bearing Thrust bearing: 270 degrees Horse Power: Up to 400 hp Wastegate: Without Wastegate Actuator Type: W/O Actuator Turbo Type: Individual Universal Fitment: Yes Finish: Matte Condition: 100% Brand New Accessories: You will get exactly as shown as picture above Package Size: 27x 25x 24 cm Package Weight: 7250g Package included: 1xTurbocharger 1x Flange Gasket 2x Oil Port Gaskets 1x Manual 1x Brochure 1x Sticker Features: *Product Material 1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700°C 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900°C 3. Compressor housing: ZL104 aluminum with lightweight 4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance *Product Features 1. Cost-effective turbo increase 20-40% power for your car 2. Rich experience in turbo production and own factory 3. High-Speed oil seal ring and Precision clearance 4. Built for Thermal Stability and strength * Technology Advantage: 1. 100% balancing Test by TURBOTECHNICS VSR3 2. G3-min-Flow VNT Turbo testing 3. Advanced Actuator Tester/Programmer NOTE: * Does NOT have a internal wastegate so you must have a external wastegate on your manifold. * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage. * Make sure the oil drain line is lower than the turbo itself. * Ensure exhaust outlet are well sealed by welding * The degree of modification of the universal turbo depends on your individual vehicle. * Professional installation is highly recommended. * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order. * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)! About MaXpe
