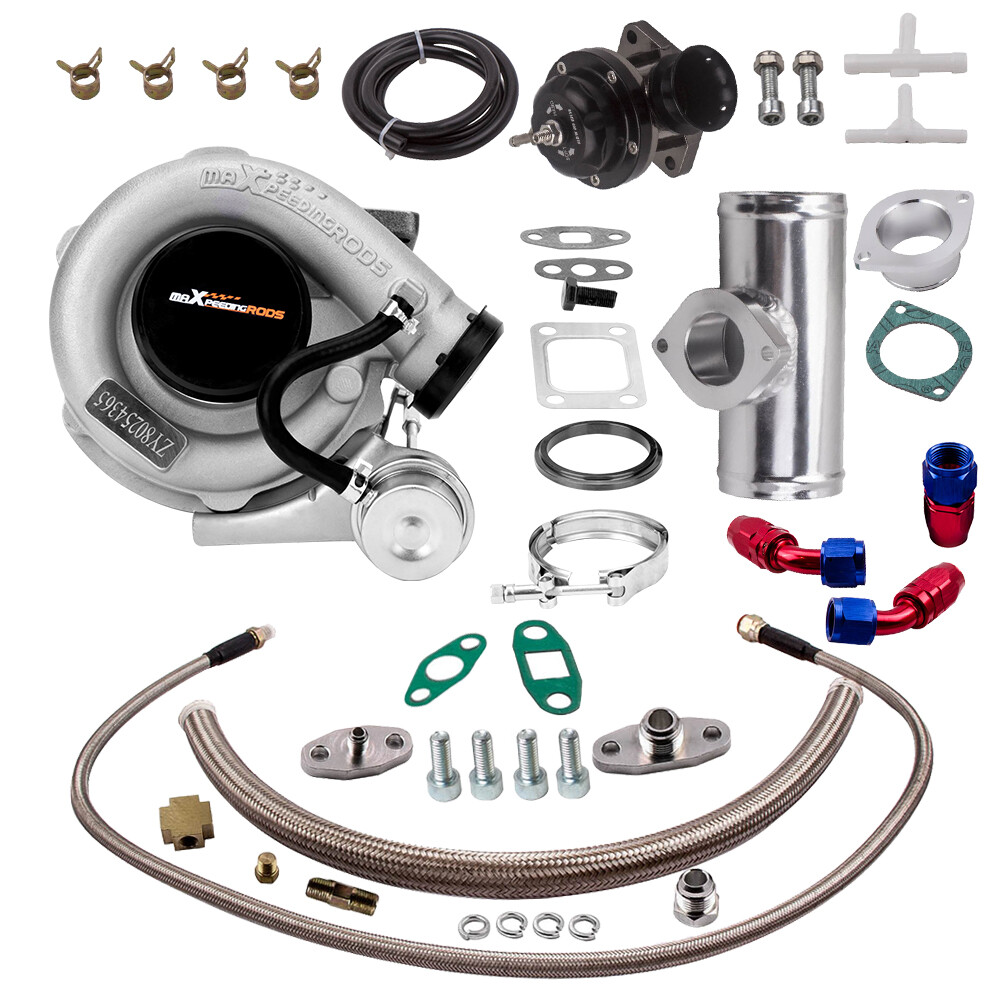

Direct-Fit T3 T04E Turbo V-Band 400+HP Internal Wastegate+Oil Return+Feed Line Blow Off

T3 T04E Turbo V-Band 400+HP Internal Wastegate+Oil Return+Feed Line Blow Off All modifications must be installed by licensed mechanics and in compliance with your local modification regulations T04E Turbocharger Application: Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines Exhaust (Turbo Manifold) Flange: T3 4 bolt Flange Patterns Exhaust Outlet Flange: V-Band Flange Cooling Type: Oil Cooled Wastegate: w/ Wastegate Horse Power: Boost Horse Power up to 420HP Turbine Side: Turbine Trim: 74.2 Turbine A/R: 0.63 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust outlet : 79mm Turbine exhaust inlet: 44.7mm (length) / 85.8mm (width) Compressor Side: Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Compressor outlet:78 mm Compressor inlet:51.5 mm Oil Inlet: M12*1.25 & 2*M8*1.25 Oil Outlet: 2*M8*1.25 Bearing: Journal Bearing Cooling Type: Oil Cooled Thrust Bearings: 270 Degrees Hosepower: Up to 420 HP Aluminum Blow Off Valve Blow Off Valve Holds Up to 30PSI Boost Pressure Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body Dual Spring System Promoted Response & Allows for High Boost Pressures Hard-Anodized Valve for Increased Air Flow Powder-Coated Anodized and Polished Finish 2 Bolts Mounting Design Flange Pipe Adapter 2.50" (63mm) Pipe Size Fits Type-S or Type-RS Dump Pipe Flange Oval / 2 Bolt Flange Design type Oil Line * OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm * OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
