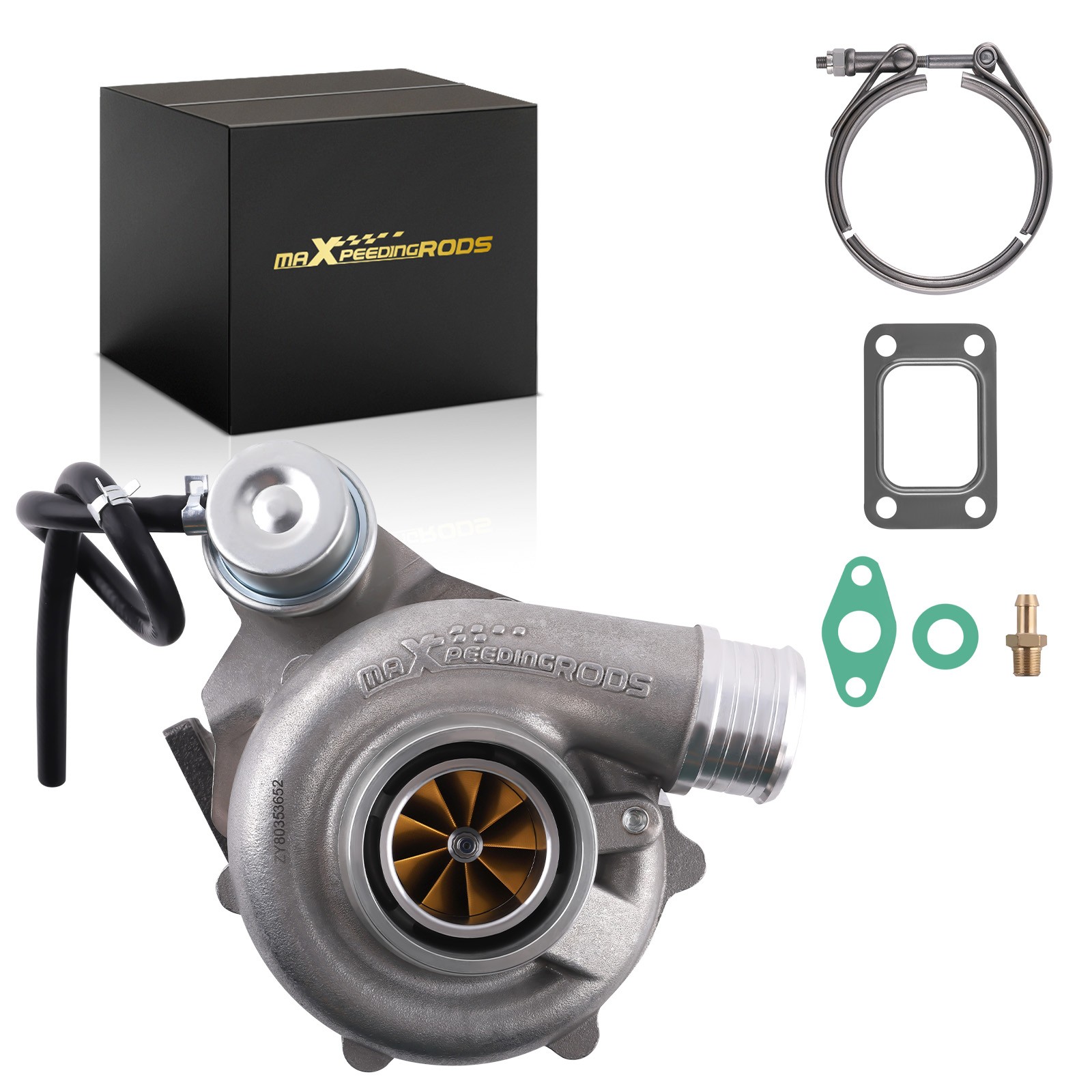

Direct-Fit T25 550HP Turbo Dual Ceramic Ball Bearing Compatible with 1.4L-3.0L Replacement for G25-550

T25 550HP Turbo Dual Ceramic Ball Bearing Compatible with 1.4L-3.0L Replacement for G25-550. T25 550HP Turbo Dual Ceramic Ball Bearing for 1.4L-3.0L Replacement for G25-550 All modifications must be installed by licensed mechanics and in compliance with your local modification regulations 550HP Racing Dual Ceramic Ball Bearing Billet T25 Turbo Turbocharger Application: for 1.4L- 3.0L engine displacements and capable of producing up to 550 horsepower Turbo Model: Replacement for G25-550 Specification: Horsepower: 300HP-550HP Displacement: 1.4L-3.0L Compressor Compressor Inducer: 48.35mm Compressor Exducer: 60mm Compressor Trim: 65 Compressor A/R: 0.70 Compressor Air Inlet : 3 Inch Compressor Air Outlet: 2 Inch Turbine Turbine Inducer: 53.9mm Turbine Exducer: 49.55mm Turbine Trim: 84 Turbine A/R: 0.49 Turbine Inlet Flange : T25 Flange Turbine Outlet Flange : 3.55 Inch (90mm)O.D. w/81mm centering ring V-Band Cooling Type: Water+Oil Cooling Bearing Type: Dual Ceramic Ball Bearing Oil Restrictor Size: 1mm Oil Inlet Size: 7/16-24 Oil Outlet Size: φ13.5-2*M8*1.25 Water Thread Size: M14*1.5 Features: *Product Material 1. Turbine housing: Stainless steel turbine housing - temperature resistant up to 1020°C 2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance up to 1000°C 3. Compressor housing: ZL104 aluminum with lightweight 4. Billet Compressor Wheel : Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response *Product Features 1. Excellent high temperature resistance, high efficiency and durability 2. Rich experience in turbo production and own factory 3. High-Speed oil seal ring and Precision clearance * Technology Advantage: 1. 100% balancing Test by TURBOTECHNICS VSR3 2. G3-min-Flow VNT Turbo testing 3. Advanced Actuator Tester/Programmer Package included: 1x Turbocharger 2x Oil Gaskets 1x Flange Gasket 1x V-BAND 1x Oil Inlet Bolt 1x Manual 1x Brochure 1x Sticker Notice: * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage. * Make sure the oil drain line is lower than the turbo itself. * Gasoline car must install a water cooling device to avoid overheating. * Ensure exhaust outlet are well sealed by welding * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended. * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order. * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
